Açıklama

PERFORMANCE
Processor	Intel® Core™ i5-13420H, 8C (4P + 4E) / 12T, P-core 2.1 / 4.6GHz, E-core 1.5 / 3.4GHz, 12MB
Graphics	Integrated Intel® UHD Graphics
Chipset	Intel® SoC Platform
Memory	1x 16GB SO-DIMM DDR4-3200
Memory Slots	Two DDR4 SO-DIMM slots, dual-channel capable
Max Memory	Up to 32GB DDR4-3200
Storage	512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
Storage Support	Up to two drives, 1x 2.5" HDD + 1x M.2 SSD • 2.5" HDD up to 1TB • M.2 SSD up to 1TB
Card Reader	No card reader
Optical	None
Audio Chip	High Definition (HD) Audio, Realtek® ALC256 codec
Speakers	2Wx1
Microphone	No microphone
Power Supply	65W 89% Adapter
DESIGN
Keyboard	USB Calliope Keyboard, Black, Turkish
Mouse	USB Calliope Mouse, Black
Optional Bay	2.5" HDD Bracket
Expansion Slots	Two M.2 slots (one for WLAN, one for SSD)
Case Color	Black
System Fan	1x System Fan
Stand	None
Adapter Cage	None
Toolless Chassis Screw	Toolless Chassis Screw
Mounting	1x VESA Mount
Pen	Pen Not Supported
Form Factor	Tiny (1L)
Dimensions (WxDxH)	179 x 182.9 x 36.5 mm (7.05 x 7.2 x 1.44 inches)
Weight	Around 1.11 kg (2.45 lbs)
CONNECTIVITY
WLAN + Bluetooth	Intel® Wi-Fi® 6 AX201, 802.11ax 2x2 + BT5.2
WWAN	Non-WWAN
Ethernet	Integrated 100/1000M

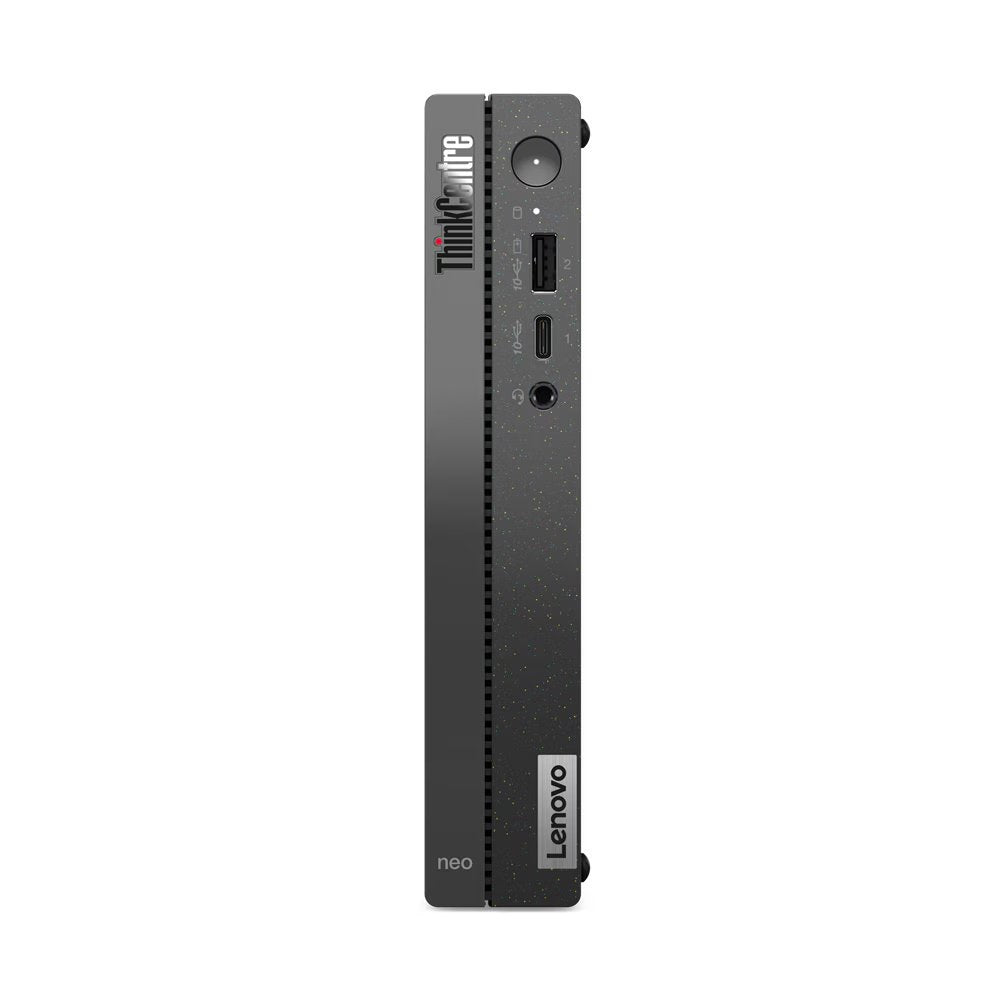

Front Ports	1x USB-C® 3.2 Gen 2 (support data transfer and 5V@0.9A charging) 1x USB 3.2 Gen 2 (Always On and 5V@2.1A charging) 1x headphone / microphone combo jack (3.5mm)
Optional Front Ports (configured)	None

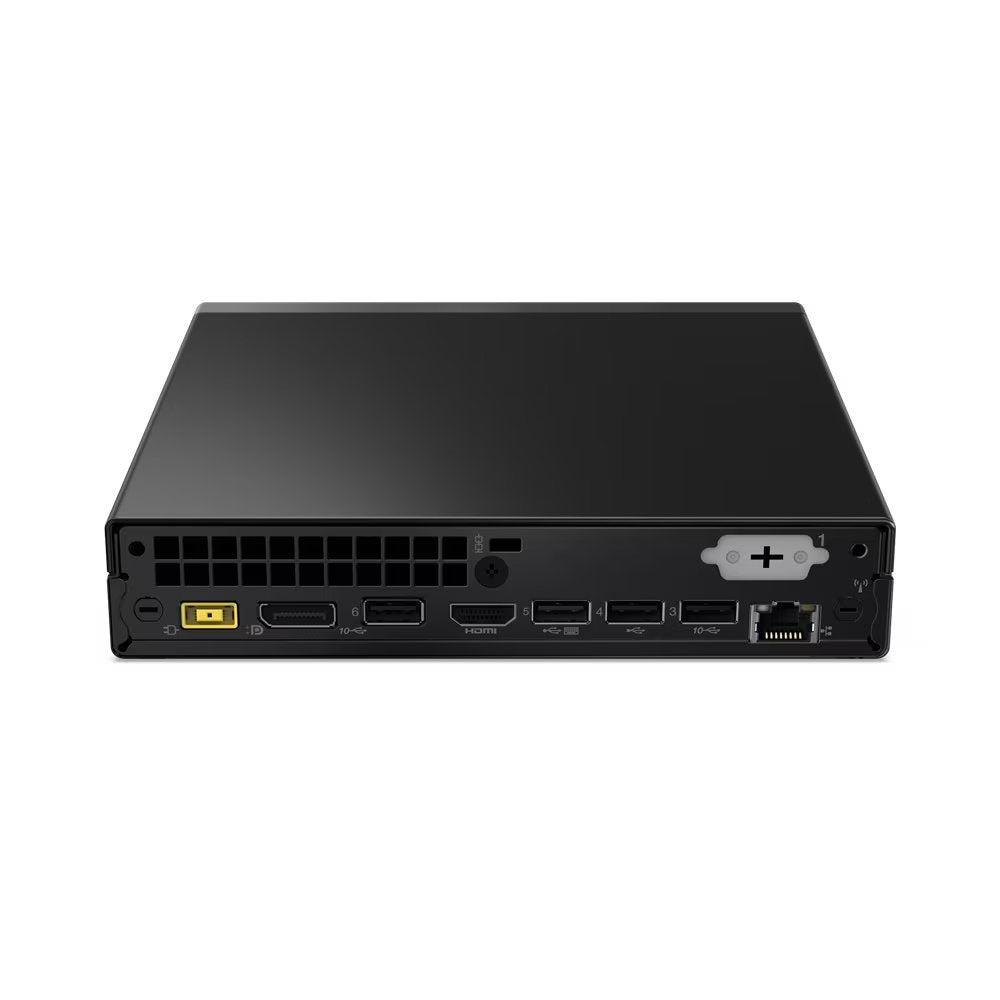

Rear Ports	2x USB 2.0 2x USB 3.2 Gen 2 1x HDMI® 2.1 TMDS 1x DisplayPort™ 1.4 1x Ethernet (RJ-45)
Optional Rear Ports (configured)	None
Monitor Cable	None
SECURITY & PRIVACY
Security Chip	Firmware TPM 2.0 integrated in SoC
Physical Locks	Kensington® Security Slot™, 3 x 7 mm
Chassis Intrusion Switch	Chassis Intrusion Switch
MANAGEABILITY
System Management	Non-vPro®
SERVICE
Base Warranty	1-year, Courier or Carry-in
Included Upgrade	3Y Onsite upgrade from 1Y Courier/Carry-in Promo(CPN)
CERTIFICATIONS
Green Certifications	ErP Lot 3/7 RoHS compliant TCO Certified 9.0
SOFTWARE
Operating System	None
Bundled Software	None
MODEL INFORMATION
Product	ThinKCentre neo 50q Gen 4
Model	12LN0048TR
Country/Region	Türkiye
TopSeller	Yes
EAN / UPC / JAN	0197532078239
Announce Date	2023-07-04
End of Support	2029-11-18
